Favoritt 19A

Favoritt 19A; Edda Radiofabrikk A/ (ID = 1755701) Radio
Favoritt 19A; Edda Radiofabrikk A/ (ID = 242012) Radio
Use red slider bar for more.
Favoritt 19A; Edda Radiofabrikk A/ (ID = 242012) Radio

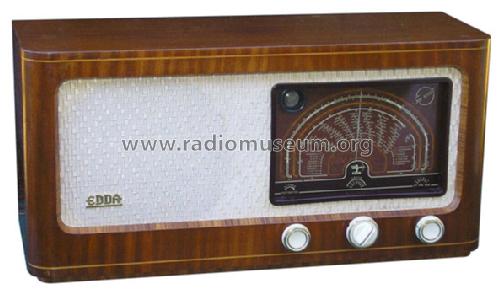

Edda Radiofabrikk A/: Favoritt 19A [Radio] ID = 242012 593x344
Select picture or schematic to display from thumbnails on the right and click for download.
For model Favoritt 19A, Edda Radiofabrikk A/S; Trondheim

Country:  Norway
Manufacturer / Brand:  Edda Radiofabrikk A/S; Trondheim
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 ECC83 EL84 EM34 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 127-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: Favoritt 19A - Edda Radiofabrikk A/S;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 600 x 300 x 220 mm / 23.6 x 11.8 x 8.7 inch
Price in first year of sale 475.00 NKr.

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Edda Radiofabrikk A/S; Trondheim
Here you find 13 models, 13 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
