For model 63, Edison-Bell Co., Inc.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Edison-Bell Co., Inc.; New York, NY
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6D6 75 37 43 25Z5
Main principle Superheterodyne (common); ZF/IF 175 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 63 - Edison-Bell Co., Inc.; New
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

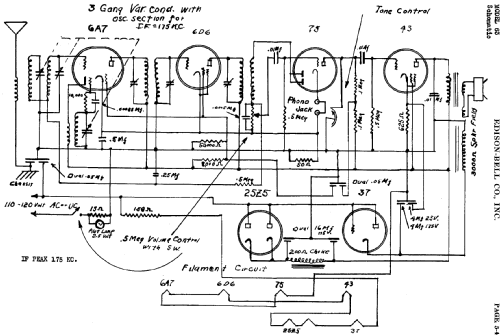

Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
