- Country
- Australia
- Manufacturer / Brand
- AEI Ekco, Ediswan-Ekco (Aust.) Pty. Ltd.; Sydney, NSW
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 235854
-
- Brand: Ekco Australia
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PCC84 PCF80 EF80 EF80 EF80 PL83 EF80 EF80 PCL82 EF80 PCF80 PCL82 12AU7A PL81 PY81 DY86 CRM172
- Number of Transistors
- Semiconductors
- Selenium-Rectifier Selenium-Rectifier
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: TT205V - AEI Ekco, Ediswan-Ekco Aust.
- Shape
- Tablemodel, with any shape - general.
- Notes
-

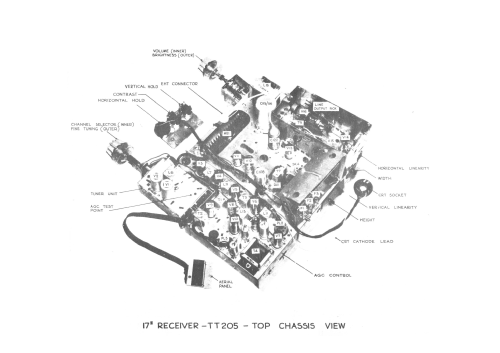

This is a 17 inch B&W television that tunes the 10 Australian VHF channels standard at the time. This model TT205V (AC power supply) differs from the TT205 (AC/DC power supply) in that the CRT heater is supplied from a power transformer rather than from the main heater chain, and the heater chain supply is rectified.
MODEL TT205 (V): Victorian Model. (From AEI service data sheets)
- Literature/Schematics (1)
- -- Schematic (J. R. Publications "Television Service Handbook" L.J. Series Vol. 1, 1962, Page E3.)
- Literature/Schematics (2)
- - - Manufacturers Literature (AEI service data manual for TT205 & TT205 (V))
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
