AL-Qithara 1400 ; Electronic (ID = 2129172) Television
Electronic: AL-Qithara 1400 [Television] ID = 2129172 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL-Qithara 1400, Electronic Industrial Company (EIC):

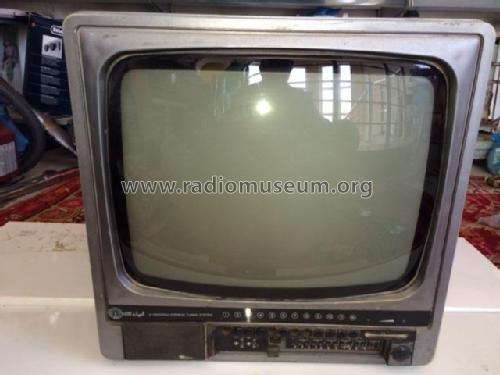

FRONT VIEW OF THE TV AL-QITHARA 1400 MADE IN IRAQ.

Country:  Iraq
Manufacturer / Brand:  Electronic Industrial Company (EIC)
Year: 1987 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: unknown_CRT
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AL-Qithara 1400 - Electronic Industrial Company
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 360 x 380 x 360 mm / 14.2 x 15 x 14.2 inch
Notes

Al-Qithara 1400 is a mains operated 14" colour portable TV receiver.
12 programs can be stored. Built in tuner Samsung ECC-2885. Voltage regulator STR30125.

Net weight (2.2 lb = 1 kg) 25 lb (25 lb 0 oz) / 11.350 kg
Price in first year of sale 160.00 IQD

Model page created by Abdilkhaliq Sabri Akrawi. See "Data change" for further contributors.
