EI-175

EI-175; Electronic (ID = 2260722) Radio EI-175; Electronic (ID = 2260723) Radio
EI-175; Electronic (ID = 2256396) Radio EI-175; Electronic (ID = 2256401) Radio
Use red slider bar for more.
EI-175; Electronic (ID = 2260722) Radio
Electronic: EI-175 [Radio] ID = 2260722 1400x919
Select picture or schematic to display from thumbnails on the right and click for download.
For model EI-175, Electronic Industrial Company (EIC)

Country:  Iraq
Manufacturer / Brand:  Electronic Industrial Company (EIC)
Year: 1988 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: unknown_tr µPC1218H
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.25 W (undistorted)
from Radiomuseum.org Model: EI-175 - Electronic Industrial Company
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 215 x 110 x 65 mm / 8.5 x 4.3 x 2.6 inch
Notes

SW range: 4.8 to 18 MHz (60 m band to 16 m Band)
Telescopic antenna for SW, ferrite rod for MW.

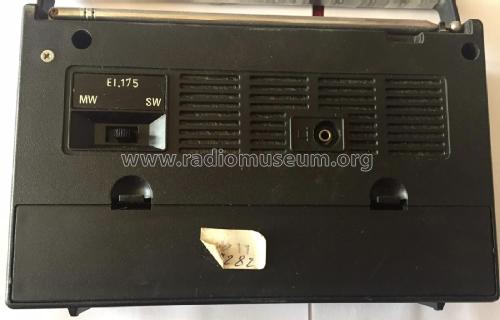

Headphones jack at the back.

Price in first year of sale 15.00 IQD

Model page created by Abdilkhaliq Sabri Akrawi. See "Data change" for further contributors.
