FM-AM Stereo Tuner ST96

FM-AM Stereo Tuner ST96; EICO Electronic (ID = 2170432) Radio
FM-AM Stereo Tuner ST96; EICO Electronic (ID = 1883743) Radio
Use red slider bar for more.
FM-AM Stereo Tuner ST96; EICO Electronic (ID = 1883743) Radio
EICO Electronic: FM-AM Stereo Tuner ST96 [Radio] ID = 1883743 1200x415
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM Stereo Tuner ST96, EICO (Electronic Instrument Co.Inc.) Brooklyn:
Eico Werbung 1961

Country:  United States of America (USA)
Manufacturer / Brand:  EICO (Electronic Instrument Co.Inc.) Brooklyn
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: ECC85 6AU6 6AU6 6AU6 6A15 DM70 12AU7 6BA6 6BA6 6BA6 6BE6 12AU7 DM70 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 250000/18000 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: FM-AM Stereo Tuner ST96 - EICO Electronic Instrument Co.
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 390 x 130 x 330 mm / 15.4 x 5.1 x 13 inch
Notes

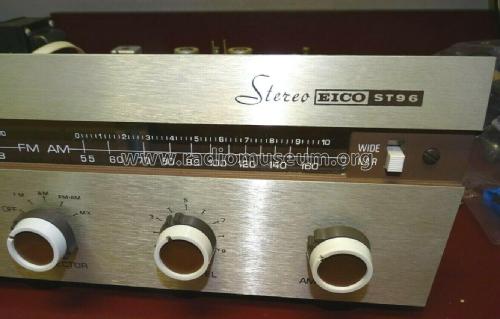

The Eico ST96 is an AC operated 13 tube AM/FM Tuner.

AM Tuner: Sensitivity: 3 uv for 1.0 v average output at 20 db S/N ratio
Selectivity: overall IF bandwidth of 18kHz at "wide bandwidth." 9 kHz at "narrow bandwidth," 6 db down
Frequency Response: 20-9,000 Hz on "wide bandwidth" 20-4500 Hz on "narrow bandwidth";
Tuning Range AM: 540 to 1650 kHz; FM: 87,5 to 108,5 MHz
Tubes: FM: 1-ECC85, 3-6AU6. 1-6ALS. 1 12AU7, 1-DM-70 tuning indicator;
AM: 2-6BA6,1-6BE6,1-12AU7. 1 crystal diode det., 1-DM70: E280 rectifier.

$130.00 USD for assembled model

$90.00 USD for kit

Price in first year of sale 130.00 USD
Literature/Schematics (1) Selezione Radio-TV Agosto 1963
