W313 (E)

W313 ; Elbia GmbH; (ID = 8331) Radio
W313 ; Elbia GmbH; (ID = 2522869) Radio
Use red slider bar for more.
W313 ; Elbia GmbH; (ID = 2522869) Radio

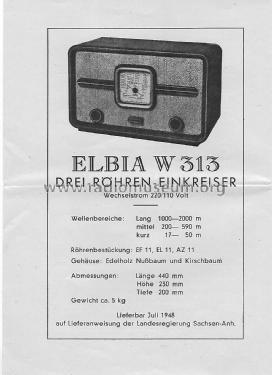

Elbia GmbH;: W313 [Radio] ID = 2522869 1192x1639
Select picture or schematic to display from thumbnails on the right and click for download.
For model W313 (E), Elbia GmbH; Schönebeck/Elbe (Ostd.):
Anzeige

Country:  Germany
Manufacturer / Brand:  Elbia GmbH; Schönebeck/Elbe (Ostd.)
alternative name

Calbe
Brand
VEB Elbia; Schönebeck
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: EF11 EL11 AZ11
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: W313 - Elbia GmbH; Schönebeck/Elbe
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 230 x 200 mm / 17.3 x 9.1 x 7.9 inch
Notes

Die Bezeichnung W313 (E) wird nur bei Lange-Nowisch auf dem Schaltplan verwendet. Siehe auch Elbia W313 (A) mit A-Röhren.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funk-Technik (FT) (7/1948, S.158f., Tabelle Empfänger Messe Leipzig)
