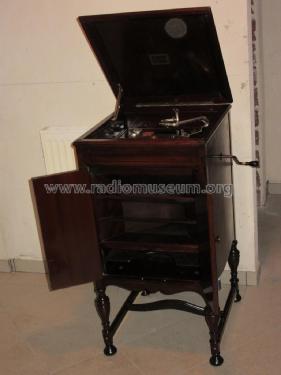

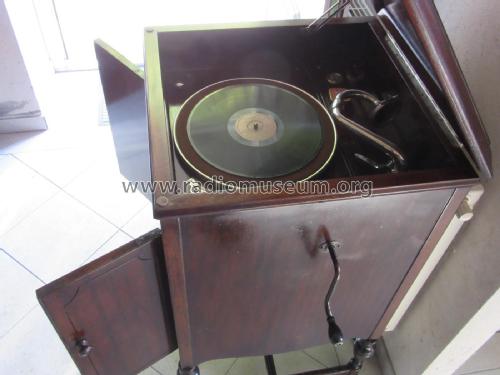

Standgrammophon 156
Electrola GmbH (falsch: Elektrola); Nowawes und Berlin
- Country
- Germany
- Manufacturer / Brand
- Electrola GmbH (falsch: Elektrola); Nowawes und Berlin
- Year
- 1926–1929
- Category
- Talking machine - Mechanical Gramophone/Phonograph
- Radiomuseum.org ID
- 317262
Katalogauszug Electrola 1926/27
- Wave bands
- - without
- Power type and voltage
- Solar- and/or muscle driven, also addl. power jack possible
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Standgrammophon 156 - Electrola GmbH falsch:
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 475 x 910 x 495 mm / 18.7 x 35.8 x 19.5 inch
- Notes
-

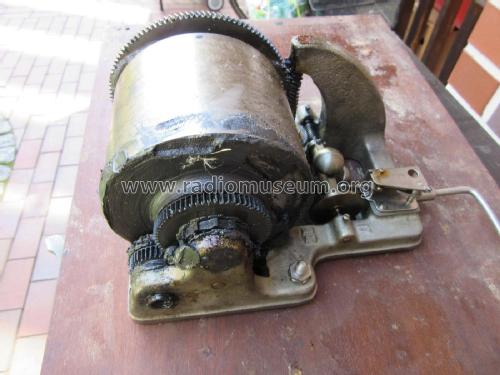

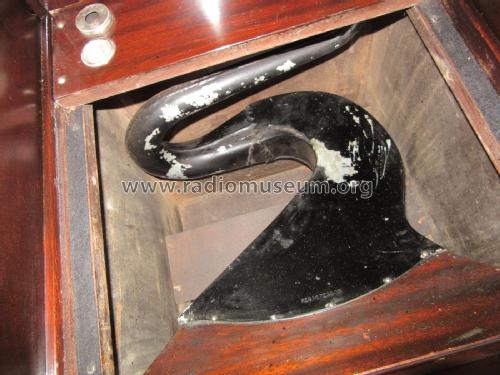

Laufwerk mit Doppelfederaufzug, manuelle Tellerbremse. Unten im Korpus zwei Plattenaufbewahrungsfächer. Innentrichter aus Stahlblech.
Das Gerät war in Eiche und Mahagoni verfügbar
- Author
- Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
