ET 1500

ET 1500; Elektron AG, Au ZH (ID = 504599) Misc ET 1500; Elektron AG, Au ZH (ID = 504600) Misc
ET 1500; Elektron AG, Au ZH (ID = 504601) Misc
Use red slider bar for more.
ET 1500; Elektron AG, Au ZH (ID = 504599) Misc

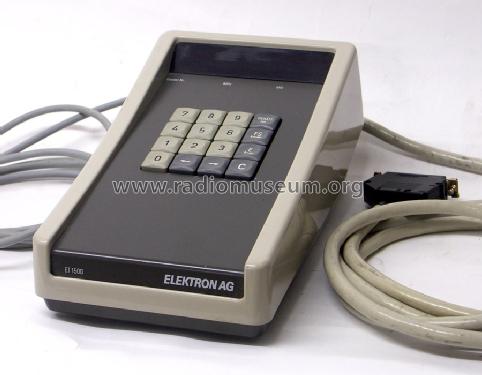

Elektron AG, Au ZH: ET 1500 [Misc] ID = 504599 900x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model ET 1500, Elektron AG, Au ZH:
Eingabetastatur zum Kurzwellenempfänger E1500 / E1501

Country:  Switzerland
Manufacturer / Brand:  Elektron AG, Au ZH
Year: 1981 Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: ET 1500 - Elektron AG, Au ZH
Material Plastics (no bakelite or catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 151 x 114 x 276 mm / 5.9 x 4.5 x 10.9 inch
Notes Eingabetastatur ET 1500: Tastatur zur externen Frequenzeingabe zum Anschluss an die Kurzwellenempfänger Telefunken E1500 / E1501.
Optional Verteilereinschub zur Anwahl von maximal 5 Empfängern und Übergabeorganisations - Print FS 1500.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Source of data -- Original-techn. papers.

Model page created by Martin Bösch. See "Data change" for further contributors.



All listed radios etc. from Elektron AG, Au ZH
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
