Allegro Z EBL1

Allegro Z ; Elektrit, Wilno (ID = 2137241) Radio Allegro Z ; Elektrit, Wilno (ID = 2137242) Radio
Allegro Z ; Elektrit, Wilno (ID = 2137243) Radio
Use red slider bar for more.
Allegro Z ; Elektrit, Wilno (ID = 2137241) Radio
Elektrit, Wilno: Allegro Z [Radio] ID = 2137241 1400x1287
Select picture or schematic to display from thumbnails on the right and click for download.
For model Allegro Z EBL1, Elektrit, Wilno:

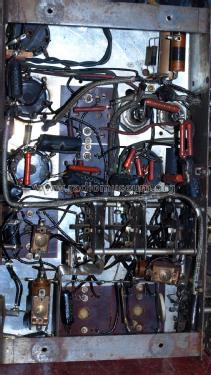

Chassis view. Radio model and serial number visible

Country:  Poland
Manufacturer / Brand:  Elektrit, Wilno
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF9 EBL1 AZ1 EM1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120; 135; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 23 cm = 9.1 inch
Power out
from Radiomuseum.org Model: Allegro Z [EBL1] - Elektrit, Wilno
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 330 x 280 mm / 20.5 x 13 x 11 inch
Notes

Late version, made using Fidelio parts (mainly IF filters and bandwidth switch). This version externally looks like regular Allegro Z, but internally is different. This version has high serial numbers, >36000

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
