TB491

TB491; Elektron; (ID = 2397437) R-Player TB491; Elektron; (ID = 2397428) R-Player
TB491; Elektron; (ID = 2397429) R-Player TB491; Elektron; (ID = 2397430) R-Player
TB491; Elektron; (ID = 2397431) R-Player TB491; Elektron; (ID = 2397432) R-Player
TB491; Elektron; (ID = 2397433) R-Player TB491; Elektron; (ID = 2397434) R-Player
TB491; Elektron; (ID = 2397435) R-Player TB491; Elektron; (ID = 2397436) R-Player
Use red slider bar for more.
TB491; Elektron; (ID = 2397437) R-Player
Elektron;: TB491 [R-Player] ID = 2397437 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model TB491, Elektron; Weikersheim/Württemberg:
hat Quelle verkauft.Ist aus eigner Sammlung

Country:  Germany
Manufacturer / Brand:  Elektron; Weikersheim/Württemberg
Year: 1961 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 EC92 ECC83 EL84 EM84
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder

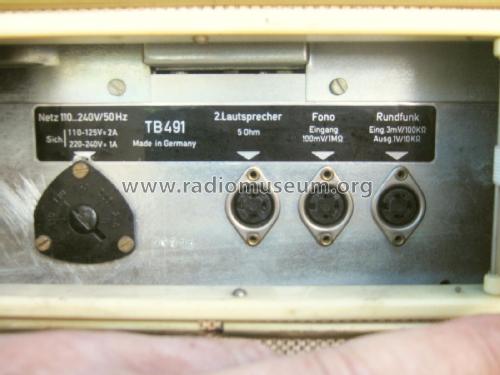

Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TB491 - Elektron; Weikersheim/
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 360 x 200 x 330 mm / 14.2 x 7.9 x 13 inch

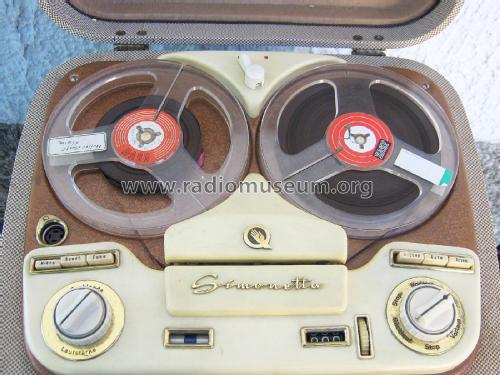

Notes Motor: Außenläufer Pabst 42 Volt. Modell wurde auch von Quelle unter der Bezeichnung "Simonetta TB 491" vertrieben. Quelle-Logo auf Gerät.
Net weight (2.2 lb = 1 kg) 9.6 kg / 21 lb 2.3 oz (21.145 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Albrecht Schwaderer. See "Data change" for further contributors.



All listed radios etc. from Elektron; Weikersheim/Württemberg
Here you find 25 models, 7 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
