• Country
• Hungary

• Manufacturer / Brand
• EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest

• Year
• 1959–1961

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 162843

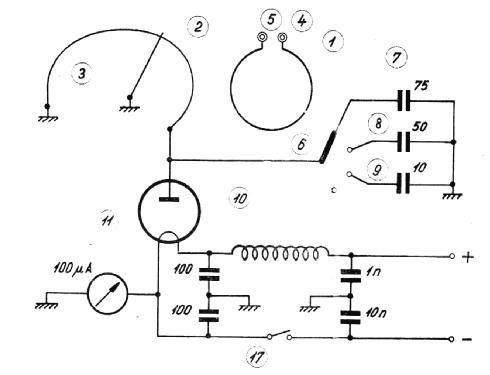

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• DA1

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 1,5 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Abszorpcios hullámmérö 1612 - EMG, Orion-EMG, Elektronikus M

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 354 x 192 x 160 mm / 13.9 x 7.6 x 6.3 inch

• Notes
• 50-500 MHz, Sensibility:5 mV.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 2,500.00 HUF

• Literature/Schematics (1)
• Magyar Műszerek Katalógusa, MIGÉRT, 1961.

• Literature/Schematics (4)
• EMG katalog 1959.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
