Frankfurt I (1)

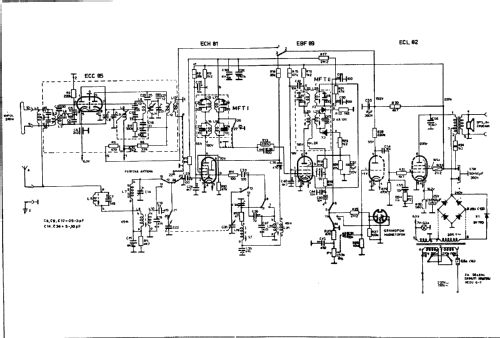

Frankfurt I ; Elektronska (ID = 1390861) Radio
Frankfurt I ; Elektronska (ID = 422871) Radio Frankfurt I ; Elektronska (ID = 422868) Radio
Frankfurt I ; Elektronska (ID = 422869) Radio Frankfurt I ; Elektronska (ID = 422870) Radio
Frankfurt I ; Elektronska (ID = 422872) Radio
Use red slider bar for more.
Frankfurt I ; Elektronska (ID = 422871) Radio
Elektronska: Frankfurt I [Radio] ID = 422871 448x269
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frankfurt I (1), Elektronska Industrija (Ei); Niš

Country:  Yugoslavia
Manufacturer / Brand:  Elektronska Industrija (Ei); Niš
Brand

Ei
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EBF89 ECL82
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif. AA121 AA121
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Frankfurt I - Elektronska Industrija Ei; Niš
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 355 x 215 x 170 mm / 14 x 8.5 x 6.7 inch
Notes

KW: Europaband 48,5 - 51,2m. UKW: 87 - 104MHz.

Siehe auch Frankfurt II, Frankfurt III und München.

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
