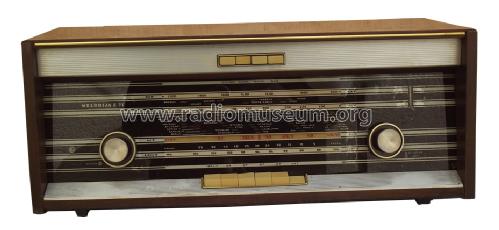

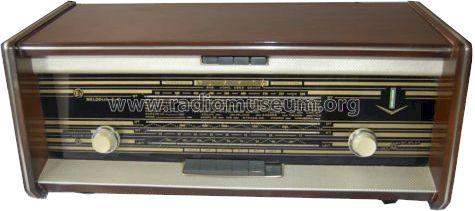

Melodija E 71

Melodija E 71; Elektronska (ID = 2285523) Radio Melodija E 71; Elektronska (ID = 1397171) Radio
Melodija E 71; Elektronska (ID = 1170734) Radio Melodija E 71; Elektronska (ID = 1397172) Radio
Melodija E 71; Elektronska (ID = 1397174) Radio Melodija E 71; Elektronska (ID = 1397176) Radio
Melodija E 71; Elektronska (ID = 2237593) Radio Melodija E 71; Elektronska (ID = 2237594) Radio
Melodija E 71; Elektronska (ID = 2237595) Radio Melodija E 71; Elektronska (ID = 2237597) Radio
Use red slider bar for more.

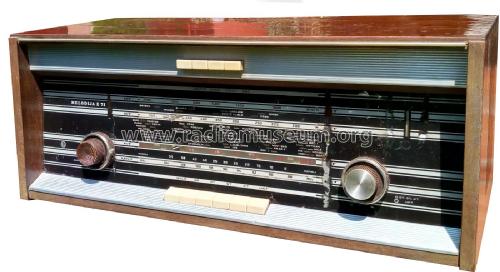

Melodija E 71; Elektronska (ID = 2285523) Radio
Elektronska: Melodija E 71 [Radio] ID = 2285523 1400x762
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodija E 71, Elektronska Industrija (Ei); Niš:
from my collection

Country:  Yugoslavia
Manufacturer / Brand:  Elektronska Industrija (Ei); Niš
Brand

Ei
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Melodija E 71 - Elektronska Industrija Ei; Niš
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes EI Melodija E 71;

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Elektronska Industrija (Ei); Niš
Here you find 103 models, 95 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
