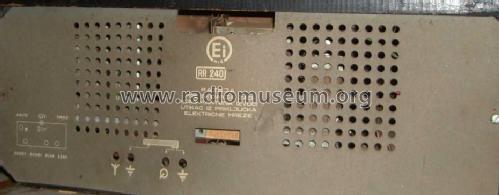

Elektronska: RR240 [Radio] ID = 2392169 1400x702
Select picture or schematic to display from thumbnails on the right and click for download.
For model RR240, Elektronska Industrija (Ei); Niš:
from my collection
Country:  Yugoslavia
Manufacturer / Brand:  Elektronska Industrija (Ei); Niš
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 ECH81 EL84 EZ80 EM80
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Model: RR240 - Elektronska Industrija Ei; Niš
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 230 x 200 mm / 20.9 x 9.1 x 7.9 inch
Notes Diode: AA112.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Source of data - - Data from my own collection

Model page created by Albrecht Schwaderer. See "Data change" for further contributors.
