Sonata

Sonata ; Elektronska (ID = 1661167) Radio

Sonata ; Elektronska (ID = 1661163) Radio

Sonata ; Elektronska (ID = 1660638) Radio
Sonata ; Elektronska (ID = 1086604) Radio Sonata ; Elektronska (ID = 1405427) Radio
Sonata ; Elektronska (ID = 1405977) Radio Sonata ; Elektronska (ID = 1723952) Radio
Use red slider bar for more.
Sonata ; Elektronska (ID = 1086604) Radio

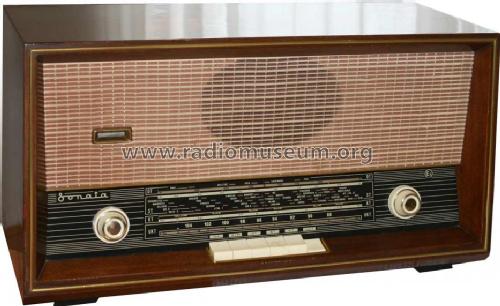

Elektronska: Sonata [Radio] ID = 1086604 933x572
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonata, Elektronska Industrija (Ei); Niš

Country:  Yugoslavia
Manufacturer / Brand:  Elektronska Industrija (Ei); Niš
Brand

Ei
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Sonata - Elektronska Industrija Ei; Niš
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Electricaly similar to Simfonija AF, but FM extended to 108 MHz. Long Wave: 150-330 kHz, BC: 515-1620 kHz, Short Wave: 5,6-20 MHz FM: 87-108 MHz.
Source of data - - Data from my own collection

Model page created by Danko Tkalec. See "Data change" for further contributors.
