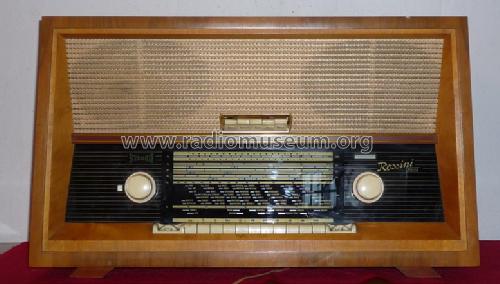

Rossini Stereo 6001 Gehäuse eckig

Elektroakustik Hartmannsdorf, EAH, VEB(K), (Ostd.)

  • Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 14402

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 478/10700 kHz
  • Tuned circuits
  • 11 AM circuit(s)     14 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Rossini Stereo 6001 [Gehäuse eckig] - Elektroakustik Hartmannsdorf,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 730 x 425 x 315 mm / 28.7 x 16.7 x 12.4 inch
  • Notes
  • Wie 6002, aber nur 2 Lautsprecher (6W Breitband und 1,5W Hochton) für linken Kanal eingebaut, nur NF-Stereo 2x 5W, externe Box für rechten Kanal, für links zusätzlich möglich. Nachhalleinrichtung auf Wunsch. AM Nah-Fern-Taste (7/11 Kreise), 3x KW, Duplexantrieb. 3 Gehäusevarianten hell/mittel/Mahagoni, Klangmischregister 5
  • Net weight (2.2 lb = 1 kg)
  • 19 kg / 41 lb 13.6 oz (41.85 lb)
  • Price in first year of sale
  • 855.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
