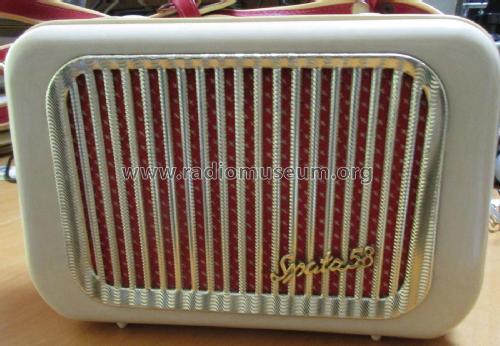

Spatz 58 5802; Elektroakustik (ID = 107146) Radio
Elektroakustik: Spatz 58 5802 [Radio] ID = 107146 868x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spatz 58 5802, Elektroakustik Hartmannsdorf, EAH, VEB(K), (Ostd.)

Country:  Germany
Manufacturer / Brand:  Elektroakustik Hartmannsdorf, EAH, VEB(K), (Ostd.)
Year: 1958–1960 Category: Broadcast Receiver - or past WW2 Tuner

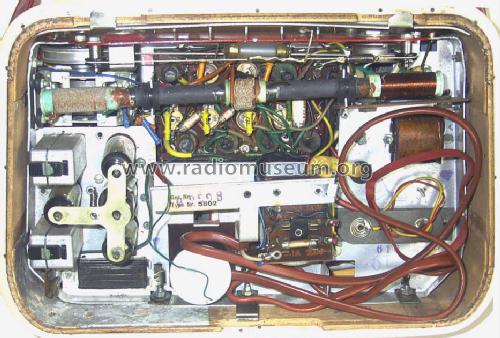

Valves / Tubes 4: DK96 DF96 DAF96 DL94
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 478 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details

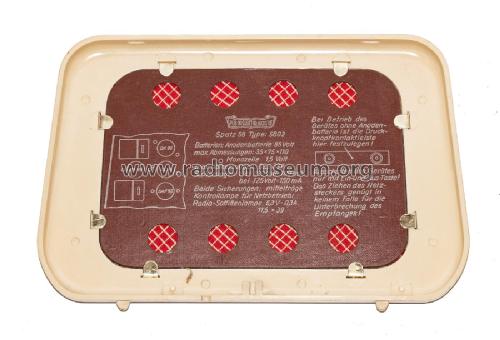

Power type and voltage Line / Batteries (any type) / 125; 220 / 1,5 or 1,2 & 85 Volt

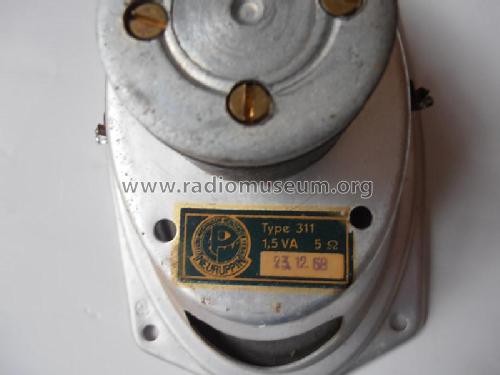

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Spatz 58 5802 - Elektroakustik Hartmannsdorf,
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 205 x 100 mm / 11.4 x 8.1 x 3.9 inch
Notes Wellen: L,M1,M2,K. 5 Tasten. Gehäuse: kaschierter Holzrahmen, Abdeckungen Thermoplast mit Metallziergittern. NC-Akku, Ladetaste, Netzteil eingebaut.
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Price in first year of sale 320.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 3
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Collector info (Sammler) (Radio und Fernsehen 9/1959)
Literature/Schematics (2) -- Original-techn. papers. (Abgleichanweisung "Spatz" Typ 5802)
Literature/Schematics (3) Zeitschrift "Jugend und Technik" (DDR), 1958, Heft 11, Seiten 651-653


All listed radios etc. from Elektroakustik Hartmannsdorf, EAH, VEB(K), (Ostd.)
Here you find 46 models, 43 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
