Akkord A102-0; Resprom; Veliko (ID = 393325) Radio

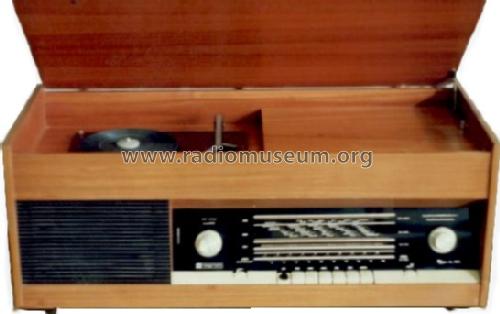

Resprom; Veliko: Akkord A102-0 [Radio] ID = 393325 546x343
Select picture or schematic to display from thumbnails on the right and click for download.
For model Akkord A102-0, Resprom; Veliko Tarnovo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Bulgaria
Manufacturer / Brand:  Resprom; Veliko Tarnovo
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker 2 Loudspeakers / Ø 20 cm = 7.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Akkord A102-0 - Resprom; Veliko Tarnovo
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 780 x 340 x 300 mm / 30.7 x 13.4 x 11.8 inch
Notes Loudspeakers: 4W, 200×150mm oval; 1.5W, diameter 100mm. With turntables. Record Player Typ: HC 07,Head-System Tesla VK 4302.
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Collectors' prices
Source of data -- Collector info (Sammler)
Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1972-75

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Resprom; Veliko Tarnovo
Here you find 36 models, 36 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
