504 AC, 4 Loktal tubes

504; Elprom KB Kliment (ID = 1301238) Radio

504; Elprom KB Kliment (ID = 1301241) Radio

504; Elprom KB Kliment (ID = 1301242) Radio

504; Elprom KB Kliment (ID = 1301243) Radio

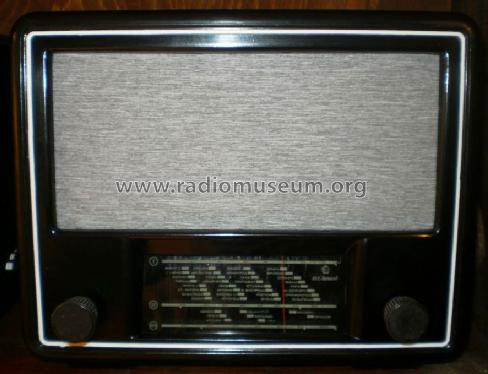

504; Elprom KB Kliment (ID = 1669504) Radio 504; Elprom KB Kliment (ID = 1301291) Radio

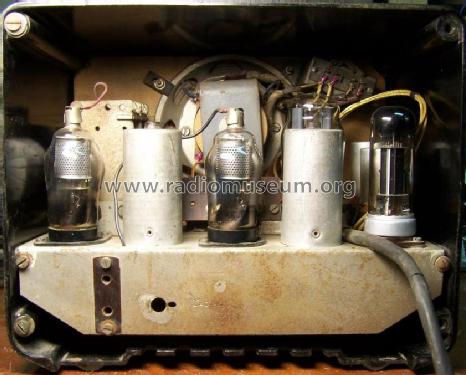

504; Elprom KB Kliment (ID = 1301299) Radio 504; Elprom KB Kliment (ID = 1669505) Radio
Use red slider bar for more.
504; Elprom KB Kliment (ID = 1669504) Radio
Elprom KB Kliment: 504 [Radio] ID = 1669504 814x666
Select picture or schematic to display from thumbnails on the right and click for download.
For model 504 AC, 4 Loktal tubes, Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia

Country:  Bulgaria
Manufacturer / Brand:  Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH4 ECH4 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (undistorted)
from Radiomuseum.org Model: 504 [AC, 4 Loktal tubes] - Elprom KB Kliment Voroshilov
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes Wave Bands:
MW: 520-1600 kHz
LW: 150-400 kHz
SW: 5.8-18 MHz
Mentioned in book "Bulgarian Radio Receivers"

Model page created by Simeon Nikolov. See "Data change" for further contributors.
