Air Prince 996

Air Prince 996; Eltra; Frederiksberg (ID = 1599085) Radio
Air Prince 996; Eltra; Frederiksberg (ID = 423311) Radio Air Prince 996; Eltra; Frederiksberg (ID = 423312) Radio
Air Prince 996; Eltra; Frederiksberg (ID = 423313) Radio Air Prince 996; Eltra; Frederiksberg (ID = 423314) Radio

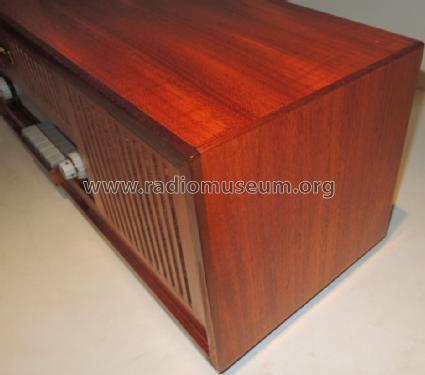

Air Prince 996; Eltra; Frederiksberg (ID = 1649334) Radio Air Prince 996; Eltra; Frederiksberg (ID = 1649336) Radio

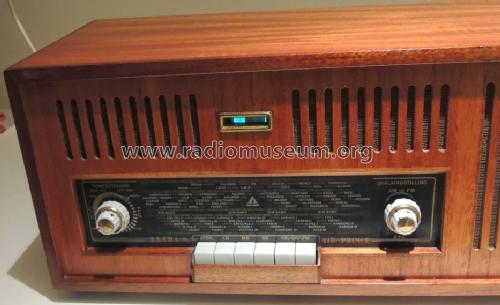

Air Prince 996; Eltra; Frederiksberg (ID = 1649338) Radio Air Prince 996; Eltra; Frederiksberg (ID = 1649340) Radio
Use red slider bar for more.
Air Prince 996; Eltra; Frederiksberg (ID = 423311) Radio
Eltra; Frederiksberg: Air Prince 996 [Radio] ID = 423311 400x176
Select picture or schematic to display from thumbnails on the right and click for download.
For model Air Prince 996, Eltra; Frederiksberg:
aus ebay, Verkäufer koschinski020574

Country:  Denmark
Manufacturer / Brand:  Eltra; Frederiksberg
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UF80 UCH81 UBF89 UM84 UCC85 UL84
Semiconductors (the count is only for transistors) OA79 OA79
Main principle Superheterodyne (common); ZF/IF 444/11000 kHz; 3 AF stage(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Air Prince 996 - Eltra; Frederiksberg
Material Wooden case
Shape Tablemodel with Push Buttons.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from Eltra; Frederiksberg
Here you find 36 models, 33 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
