Magnavox Air Prince 43 U.S.

Magnavox Air Prince 43 U.S.; Eltra; Frederiksberg (ID = 981178) Radio Magnavox Air Prince 43 U.S.; Eltra; Frederiksberg (ID = 981180) Radio
Magnavox Air Prince 43 U.S.; Eltra; Frederiksberg (ID = 981182) Radio Magnavox Air Prince 43 U.S.; Eltra; Frederiksberg (ID = 981183) Radio
Use red slider bar for more.

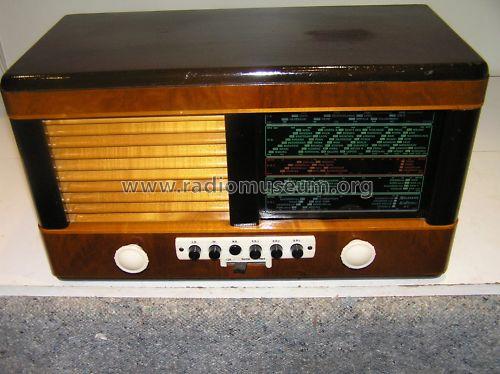

Magnavox Air Prince 43 U.S.; Eltra; Frederiksberg (ID = 981178) Radio
Eltra; Frederiksberg: Magnavox Air Prince 43 U.S. [Radio] ID = 981178 500x374
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnavox Air Prince 43 U.S., Eltra; Frederiksberg:
ebay VK:radiocollect #110675089557

Country:  Denmark
Manufacturer / Brand:  Eltra; Frederiksberg
Year: 1948 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Magnavox Air Prince 43 U.S. - Eltra; Frederiksberg
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 245 x 230 mm / 17.7 x 9.6 x 9.1 inch
Notes 6 Druckknöpfe: LB, Gr., MB, K.B.3, K.B.2, K.B.1 (in Landessprache)
Veränderte Skala zu Magnavox Air Prince 42U.

Model page created by Aglef Tröger. See "Data change" for further contributors.



All listed radios etc. from Eltra; Frederiksberg
Here you find 36 models, 33 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
