• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38460

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 78 6A7 6B7 77 43 25Z5

• Main principle
• Superhet with RF-stage; ZF/IF 125 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 100-135 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

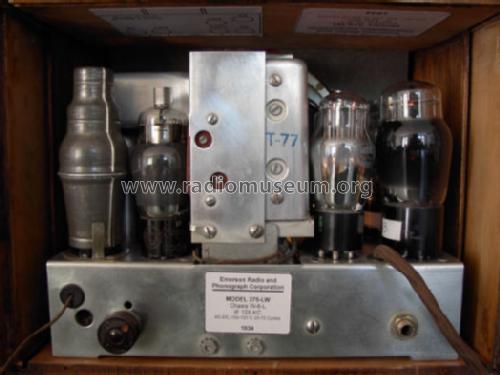

• Model: 375LW Ch= W-6-L - Emerson Radio & Phonograph

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 295 x 235 x 175 mm / 11.6 x 9.3 x 6.9 inch

• Notes

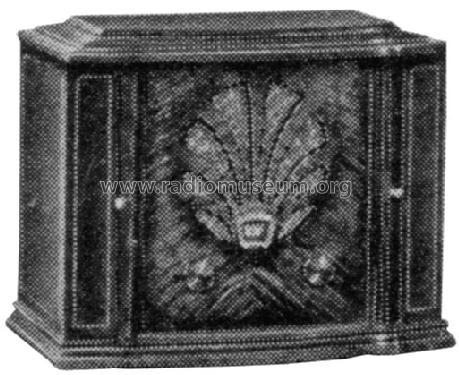

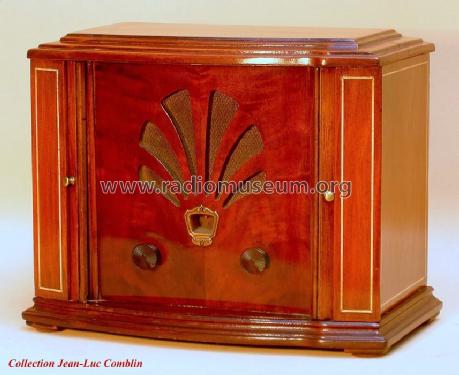

• LW(150-300kHz) and BC(540-1500kHz) bands. Double tambour doors;

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before
