724 (series B and D) Ch= 120151B red (Cherry Red)

724 Ch= 120151B; Emerson Radio & (ID = 161470) Radio

724 Ch= 120151B; Emerson Radio & (ID = 559252) Radio

724 Ch= 120151B; Emerson Radio & (ID = 559253) Radio

724 Ch= 120151B; Emerson Radio & (ID = 559254) Radio

724 Ch= 120151B; Emerson Radio & (ID = 559255) Radio
724 Ch= 120151B; Emerson Radio & (ID = 284615) Radio 724 Ch= 120151B; Emerson Radio & (ID = 284616) Radio
724 Ch= 120151B; Emerson Radio & (ID = 284617) Radio 724 Ch= 120151B; Emerson Radio & (ID = 284618) Radio

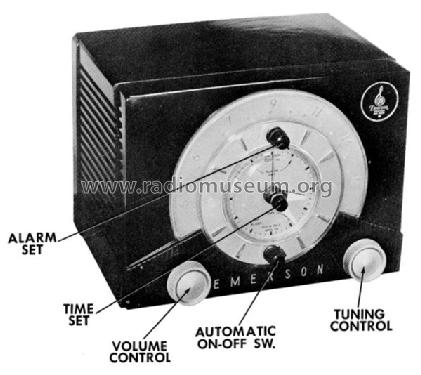

724 Ch= 120151B; Emerson Radio & (ID = 709221) Radio 724 Ch= 120151B; Emerson Radio & (ID = 1400993) Radio
724 Ch= 120151B; Emerson Radio & (ID = 1412313) Radio
Use red slider bar for more.
724 Ch= 120151B; Emerson Radio & (ID = 284615) Radio

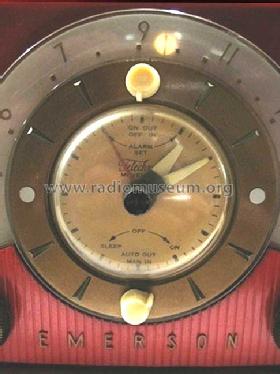

Emerson Radio &: 724 Ch= 120151B [Radio] ID = 284615 800x601
Select picture or schematic to display from thumbnails on the right and click for download.
For model 724 (series B and D) Ch= 120151B red (Cherry Red), Emerson Radio & Phonograph Corp.; New York, NY:
Ebay Nr. 110064878297 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1953/1954 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 724 Ch= 120151B [red ] - Emerson Radio & Phonograph
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 195 x 150 x 140 mm / 7.7 x 5.9 x 5.5 inch
Notes

See the "Assorted decorator colors" on separate model pages to enable a collector to show his/her different colored models in the collector page by uploading a photo of each to the corresponding page - and allows RMorg to show a full gallery if wished in a later stage.

The clock-radio Emerson 724 was sold in these colors: Cherry Red, Hot Chocolate, Forest Green, Cloud Gray, Ivory, Cerulean Blue, Sand (Pink), Willow Green (a very light Green), and Ebony. Today we have to be careful if a set is not overpainted or to think there is a missing color here because his/her set is bleached out. Depending on case color there may be different colored knobs.
The add from a 1953 paper reads: You get so much more with Emerson! Nine Smart "House and Garden"colors. A percision electric Alarm-Clock with Easy-See Dial (one glance tells you time and station) A beam light indicator- helps you dial in the dark!

The models show at the back side a timer outlet for up to 1100 watts at 115 volts AC and a radio switch. Model 808-B and 810-B have a similar cabinet and chassis - wothout clock. Internal ferrite rod antenna.

According to Beitman diagrams the chassis is 120151-B, but we don't know if this is the case for all series. The model 724 is known for series B (724-B) and series D (724-D). See sticker at the bottom.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Beitman Radio Diagrams Vol. 13, 1953
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 7-53, Set 208, Folder 5)
Literature/Schematics (3) Emerson Folder "New 1954".

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
