724 (series B and D) Ch= 120151B pink (Sand)

724 Ch= 120151B; Emerson Radio & (ID = 2536209) Radio
724 Ch= 120151B; Emerson Radio & (ID = 2029475) Radio 724 Ch= 120151B; Emerson Radio & (ID = 2029476) Radio
724 Ch= 120151B; Emerson Radio & (ID = 2029478) Radio 724 Ch= 120151B; Emerson Radio & (ID = 2029479) Radio
724 Ch= 120151B; Emerson Radio & (ID = 2029474) Radio
Use red slider bar for more.
724 Ch= 120151B; Emerson Radio & (ID = 2029475) Radio
Emerson Radio &: 724 Ch= 120151B [Radio] ID = 2029475 1303x1099
Select picture or schematic to display from thumbnails on the right and click for download.
For model 724 (series B and D) Ch= 120151B pink (Sand), Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1953/1954 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 60Hz, 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 724 Ch= 120151B [pink ] - Emerson Radio & Phonograph
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 195 x 150 x 140 mm / 7.7 x 5.9 x 5.5 inch
Notes

See the "Assorted decorator colors" on separate model pages to enable a collector to show his/her different colored models in the collector page by uploading a photo of each to the corresponding page - and allows RMorg to show a full gallery if wished in a later stage.

The clock-radio Emerson 724 was sold in these colors: Cherry Red, Hot Chocolate, Forest Green, Cloud Gray, Ivory, Cerulean Blue, Sand (Pink), Willow Green (a very light Green), and Ebony. Today we have to be careful if a set is not overpainted or to think there is a missing color here because his/her set is bleached out. Depending on case color there may be different colored knobs.
The add from a 1953 paper reads: You get so much more with Emerson! Nine Smart "House and Garden"colors. A percision electric Alarm-Clock with Easy-See Dial (one glance tells you time and station) A beam light indicator- helps you dial in the dark!

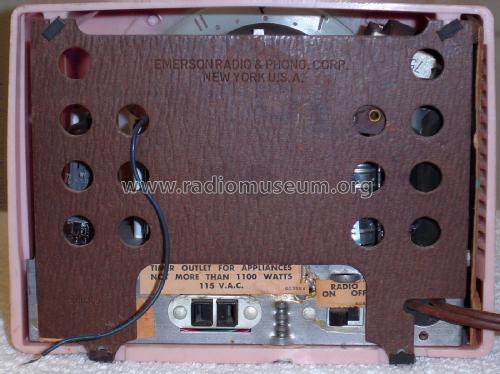

The models show at the back side a timer outlet for up to 1100 watts at 115 volts AC and a radio switch. Model 808-B and 810-B have a similar cabinet and chassis - wothout clock. Internal ferrite rod antenna.

According to Beitman diagrams the chassis is 120151-B, but we don't know if this is the case for all series. The model 724 is known for series B (724-B) and series D (724-D). See sticker at the bottom.

The BC band frequency tuning range is 540 to 1620kHz. Uses couplate 923024. See the different colors and more schematic sources with other colors.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 125.00 $
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 208, Folder 5 dated 7-53)
Literature/Schematics (2) Beitman Radio Diagrams, Vol. 13, 1953 (Page 37)

Model page created by Terry Rohler. See "Data change" for further contributors.
