AP-185 Ch= AP
|
|
||||
|
alternative name
|
Emerson Television | ||||
|---|---|---|---|---|---|
| Year: 1937/1938 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6A7 6D6 6Q7 25L6 25Z5 3CR-241 |
| Main principle | Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 105-125 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm |
| Power out | |
| from Radiomuseum.org | Model: AP-185 Ch= AP - Emerson Radio & Phonograph |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |

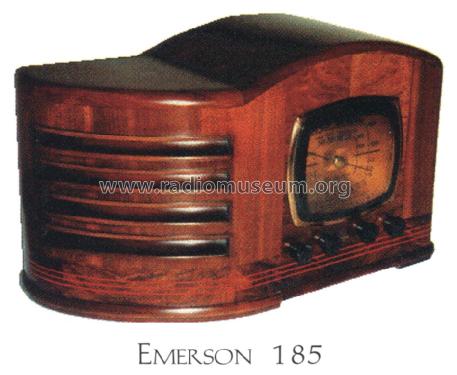

| Notes | Emerson AP-185 features LW(150-375kHz), BC(540-1600kHz) and SW(5.7-17.5MHz) bands. Uses either 6.5" or 10" speaker. Cabinet is made of hand-rubbed Walnut with the Emerson "Miracle Tone Chamber". The price is according to a 1938 Emerson sales brochure. |
| Price in first year of sale | 49.95 $ |
| External source of data | Ernst Erb |
| Source of data | The Radio Collector's Directory and Price Guide 1921 - 1965 |
| Circuit diagram reference | Rider's Perpetual, Volume 8 = 1937 and before |
| Mentioned in | 1938 Emerson sales brochure |
| Literature/Schematics (1) | Machine Age to Jet Age II (page 42.) |
| Literature/Schematics (3) | Emerson Folder Form. 38-3, 5-37 for 1938. |
All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
Here you find 1913 models, 1011 with images and 1435 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
|
Hits: 1503 Replies: 2
emerson: Origonal Picture
|
|
|
Paul E. Pinyot † 2013
19.Mar.12 |
1
I am restoring one of these AP185 back to original. There seems to be different positions for the Treble Cleft Emerson logo. The black and white photo shows it between knobs. Modern color photos show it above the dial scale. I suspect restorers placed a new decal in the wrong position. Also do the knobs originally have function decals between the red pin strip lines? I would appreciate if some one has original advertising materials or brochures could verify proper decal positions and labels. You can see my project radio at this link. Thank you, Paul |
|
Bruno Gandolfo-Canepa
23.Mar.12 |
2
Hello Paul, I don't have original documents however I have been watching the web and I have found five different AP185 sets. ALL they with the scutcheon above the dial scale. Perhaps the model changed the style after initial design. Greetings, Bruno. |
|
Paul E. Pinyot † 2013
23.Mar.12 |
3
Bruno, Thank you for following up on this post. The more I think about it and look at different pictures of actual radios the more I agree with your observation. The logo between the knobs would look cramped. Others feel the knob function labels would be proper for the time period. I ordered all the decals today from Radio Daze. It takes three decal sheets to complete the lettering and the logo. Thanks again for the follow up, Paul.
|
End of forum contributions about this model
