D136 Ch= D

D136 Ch= D; Emerson Radio & (ID = 285091) Radio

D136 Ch= D; Emerson Radio & (ID = 569825) Radio
Use red slider bar for more.
D136 Ch= D; Emerson Radio & (ID = 285091) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6K7 6A8 6K7 6H6 6G5 6F5 6C5 6F6 6F6 5Z3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: D136 Ch= D - Emerson Radio & Phonograph
Material Wooden case
Notes BC(540-1800kHz), TROP(1750-6000kHz) and SW(5.5-18.0MHz) bands. Push-pull audio amplifier. Tuning eye.

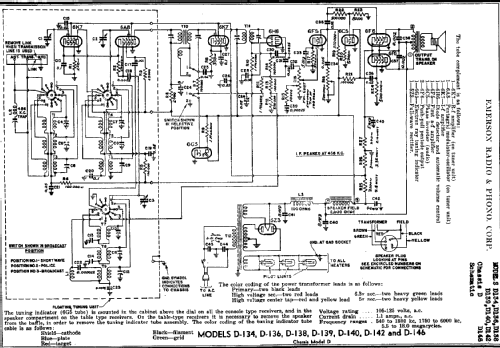

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before

Model page created by Götz Linss. See "Data change" for further contributors.
