• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39005

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 43 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: F-133 Ch= F [early, below 862,650] - Emerson Radio & Phonograph

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 9.5 x 8.5 inch / 406 x 241 x 216 mm

• Notes

• The Emerson F-133 is a 5-tube, 3-band super-heterodyne radio. Covers LW (150-375 kHz), BC (540-1600 kHz) and SW (5.7-17.5 MHz) bands. Ingraham cabinet. See also a late version with different tube lineup and schematic.

• Price in first year of sale
• 44.95 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (3)

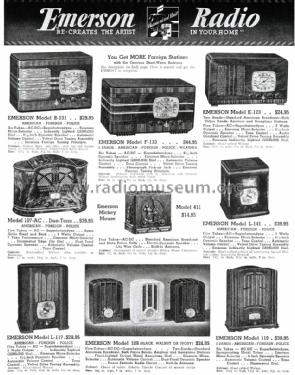

• Emerson Folder Form-19, 37-6-36, for 1936/1937. Folder Form-19-R, 37-9-36, for 1936/1937.
