F133 Ch= F late, above 862,650

F133 Ch= F; Emerson Radio & (ID = 569877) Radio
F133 Ch= F; Emerson Radio & (ID = 255105) Radio F133 Ch= F; Emerson Radio & (ID = 255106) Radio
F133 Ch= F; Emerson Radio & (ID = 1410959) Radio
Use red slider bar for more.
F133 Ch= F; Emerson Radio & (ID = 255105) Radio

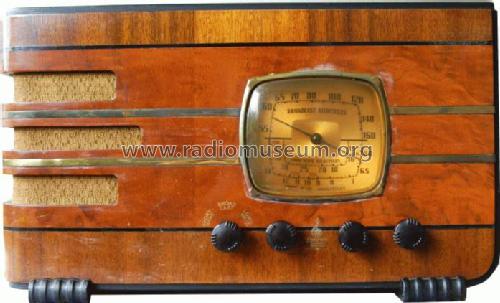

Emerson Radio &: F133 Ch= F [Radio] ID = 255105 697x423
Select picture or schematic to display from thumbnails on the right and click for download.
For model F133 Ch= F late, above 862,650, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1938 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6Q7 25B5 25Z5
Semiconductors (the count is only for transistors) 3ER-248
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker -Loudspeaker incorporated, but system not known. / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: F133 Ch= F [late, above 862,650] - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 240 x 230 mm / 16.1 x 9.4 x 9.1 inch
Notes Ingraham design. also an early model with different tube lineup.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Rider's Perpetual, Volume 9 = 1938 and before

Model page created by Pius Steiner. See "Data change" for further contributors.
