A730

A730; Emerson Electronics; (ID = 521540) Radio A730; Emerson Electronics; (ID = 521545) Radio
A730; Emerson Electronics; (ID = 521544) Radio A730; Emerson Electronics; (ID = 521541) Radio
A730; Emerson Electronics; (ID = 952111) Radio A730; Emerson Electronics; (ID = 952112) Radio
A730; Emerson Electronics; (ID = 952113) Radio A730; Emerson Electronics; (ID = 952114) Radio
A730; Emerson Electronics; (ID = 1378191) Radio A730; Emerson Electronics; (ID = 1378194) Radio
Use red slider bar for more.
A730; Emerson Electronics; (ID = 521540) Radio
Emerson Electronics;: A730 [Radio] ID = 521540 816x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model A730, Emerson Electronics; Firenze:

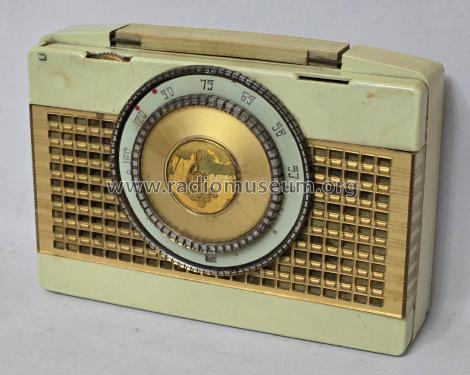

Vista frontale (S.Baldi)

Country:  Italy
Manufacturer / Brand:  Emerson Electronics; Firenze
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1U6 1AF4 1AF5 3A4
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110-220 ; (1,5 + 67,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.45 W (unknown quality)
from Radiomuseum.org Model: A730 - Emerson Electronics; Firenze
Material Bakelite or Plastics (type unknown)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 153 x 57 mm / 8.7 x 6 x 2.2 inch
Notes Mobiletto in bakelite color avorio con disco di sintonia interno e concentrico con disco di selezione di banda. Oltre alla variante A730/C (gamme d'onda: medie e 2 corte), esisteva anche la variante A730/L (medie, lunghe e corte). Su Catalogo ANIE 1956-57 l'elenco valvole è: DK96 DF96 DAF96 DL93 DM70 (l'occhio magico però non appare nelle fotografie).
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 42'000.00 ITL
Mentioned in Catalogo ANIE (1956-57)

Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.



All listed radios etc. from Emerson Electronics; Firenze
Here you find 27 models, 19 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
