Watch A737

Watch A737; Emerson Electronics; (ID = 1017196) Radio
Watch A737; Emerson Electronics; (ID = 1017185) Radio Watch A737; Emerson Electronics; (ID = 1017170) Radio
Watch A737; Emerson Electronics; (ID = 1017172) Radio Watch A737; Emerson Electronics; (ID = 1017180) Radio
Watch A737; Emerson Electronics; (ID = 1017186) Radio
Use red slider bar for more.

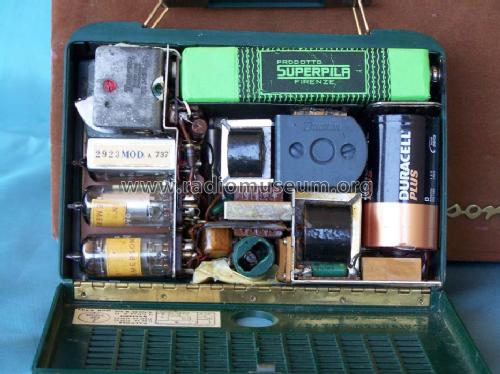

Watch A737; Emerson Electronics; (ID = 1017185) Radio
Emerson Electronics;: Watch A737 [Radio] ID = 1017185 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Watch A737, Emerson Electronics; Firenze

Country:  Italy
Manufacturer / Brand:  Emerson Electronics; Firenze
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL92
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 110; 140; 160; 220 / 45 & 1,5 ) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Watch A737 - Emerson Electronics; Firenze
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 165 x 115 x 50 mm / 6.5 x 4.5 x 2 inch
Notes Con orologio a carica manuale.
Net weight (2.2 lb = 1 kg) 0.920 kg / 2 lb 0.4 oz (2.026 lb)
Literature/Schematics (1) D.E.Ravalico, Il Radiolibro, 16^ edizione, Hoepli, 1957

Model page created by Roberto Cecchi. See "Data change" for further contributors.



All listed radios etc. from Emerson Electronics; Firenze
Here you find 27 models, 19 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
