Oktodyn 46

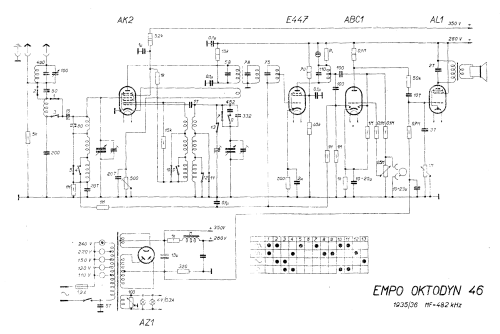

Oktodyn 46; EMPO, Severoceska (ID = 11244) Radio
Oktodyn 46; EMPO, Severoceska (ID = 69078) Radio Oktodyn 46; EMPO, Severoceska (ID = 69085) Radio
Oktodyn 46; EMPO, Severoceska (ID = 69084) Radio Oktodyn 46; EMPO, Severoceska (ID = 69081) Radio

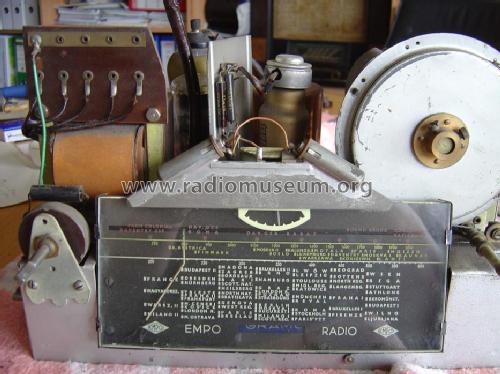

Oktodyn 46; EMPO, Severoceska (ID = 69086) Radio Oktodyn 46; EMPO, Severoceska (ID = 69087) Radio

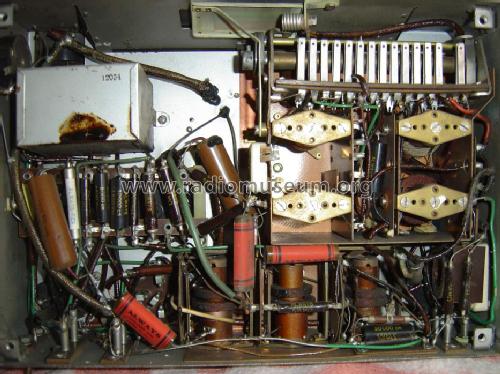

Oktodyn 46; EMPO, Severoceska (ID = 69088) Radio Oktodyn 46; EMPO, Severoceska (ID = 69089) Radio
Oktodyn 46; EMPO, Severoceska (ID = 809189) Radio
Use red slider bar for more.
Oktodyn 46; EMPO, Severoceska (ID = 69078) Radio
EMPO, Severoceska: Oktodyn 46 [Radio] ID = 69078 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oktodyn 46, EMPO, Severoceska Tovarna El., Sp. S.R.O (ESTE).; Praha-Cakovice:
EMPO Oktodyn 46 Baujahr 1935

Country:  Czechoslovakia
Manufacturer / Brand:  EMPO, Severoceska Tovarna El., Sp. S.R.O (ESTE).; Praha-Cakovice
alternative name

Severoceska Tovarna Elektromeru
Brand
ESTE
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 E447 ABC1 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 482 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Oktodyn 46 - EMPO, Severoceska Tovarna El.,
Material Wooden case
Notes Zeiger-Abstimmhilfe
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947


All listed radios etc. from EMPO, Severoceska Tovarna El., Sp. S.R.O (ESTE).; Praha-Cakovice
Here you find 32 models, 28 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
