• Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23395

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 180; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

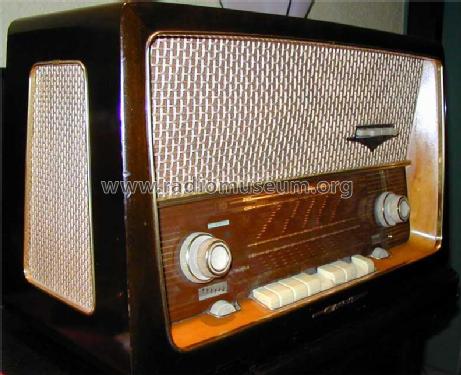

  • Model: De Luxe 61 - Emud, Ernst Mästling; Ulm
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 600 x 360 x 280 mm / 23.6 x 14.2 x 11 inch
  • Notes
  • Dreh- und abschaltbare Ferritantenne, Drucktaste für Außenlautsprecher Ein/Aus.
  • Net weight (2.2 lb = 1 kg)
  • 11.5 kg / 25 lb 5.3 oz (25.33 lb)
  • Price in first year of sale
  • 309.00 DM
  • External source of data
  • Erb
