For model Record ST, Emud, Ernst Mästling; Ulm:
EDMUD_modello_Record ST

Country:  Germany
Manufacturer / Brand:  Emud, Ernst Mästling; Ulm
Year: 1953 ?? Category: Broadcast Receiver - or past WW2 Tuner

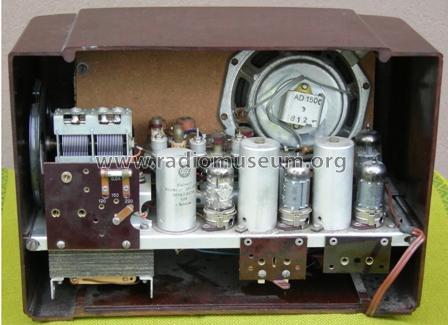

Valves / Tubes 5: ECH42 EF41 EBC41 EL41 AZ41
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Record ST - Emud, Ernst Mästling; Ulm

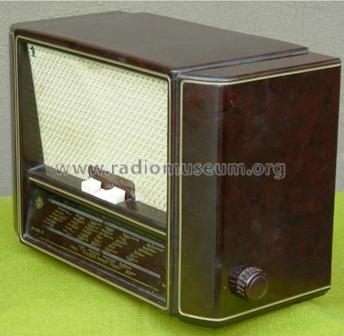

Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 300 x 210 x 140 mm / 11.8 x 8.3 x 5.5 inch
Notes Bakelitgehäuse, Rimlockröhren, 3 Tasten über der Skala: L - M - K.
Radio di piccole dimensioni di materiale plastico o Bakelite Con piccola pulsantiera x Onde, lunghe medie e corte.Bottoni:ON-Of- volume sul lato destro. Sintonia sul lato sinistro.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)

Model page created by Gian-Fausto Balestra. See "Data change" for further contributors.
