• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1553

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• CF3 CF7 CL4 CY1

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

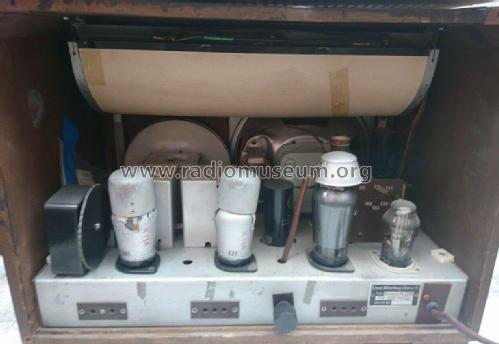

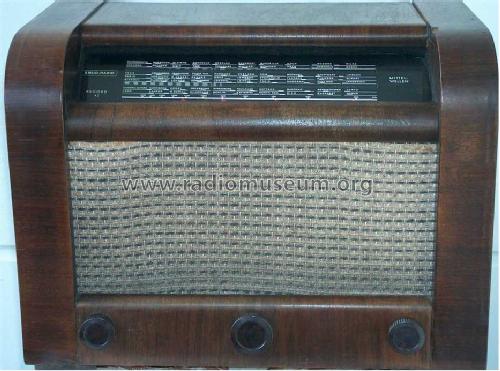

• Model: Record 42-GW - Emud, Ernst Mästling; Ulm

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 460 x 330 x 280 mm / 18.1 x 13 x 11 inch

• Notes
• Pultskala

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 159.00 RM

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
