Super Record (Rekord) S-W

Super Record S-W; Emud, Ernst Mästling (ID = 12144) Radio
Super Record S-W; Emud, Ernst Mästling (ID = 210) Radio Super Record S-W; Emud, Ernst Mästling (ID = 1005431) Radio
Super Record S-W; Emud, Ernst Mästling (ID = 28277) Radio Super Record S-W; Emud, Ernst Mästling (ID = 722393) Radio
Super Record S-W; Emud, Ernst Mästling (ID = 1005430) Radio
Use red slider bar for more.
Super Record S-W; Emud, Ernst Mästling (ID = 210) Radio

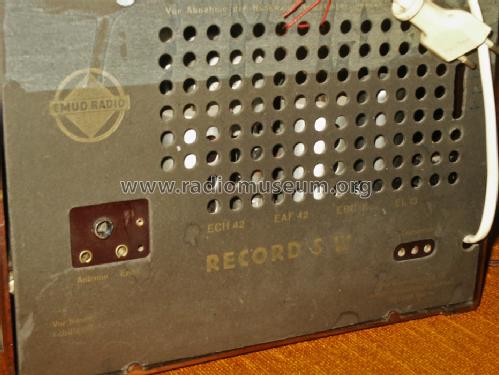

Emud, Ernst Mästling: Super Record S-W [Radio] ID = 210 675x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Record (Rekord) S-W, Emud, Ernst Mästling; Ulm

Country:  Germany
Manufacturer / Brand:  Emud, Ernst Mästling; Ulm
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH42 EAF42 EBC41 EL13 or EL8
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Super Record S-W - Emud, Ernst Mästling; Ulm
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 295 x 210 x 150 mm / 11.6 x 8.3 x 5.9 inch
Notes

Autotrafo, keine Netztrennung !!!

Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Price in first year of sale 130.00 DM
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.
