Super 179W Stahlröhren

Super 179W; Emud, Ernst Mästling (ID = 156648) Radio

Super 179W; Emud, Ernst Mästling (ID = 1019042) Radio

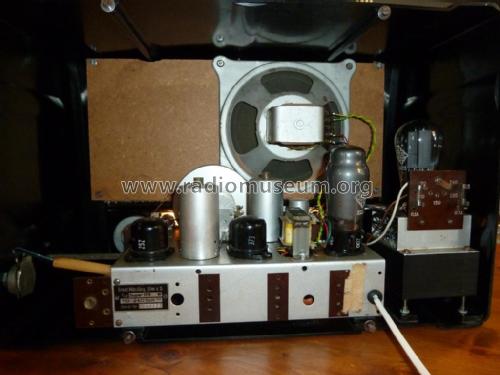

Super 179W; Emud, Ernst Mästling (ID = 2349248) Radio Super 179W; Emud, Ernst Mästling (ID = 2349254) Radio
Super 179W; Emud, Ernst Mästling (ID = 2349250) Radio Super 179W; Emud, Ernst Mästling (ID = 2349252) Radio
Super 179W; Emud, Ernst Mästling (ID = 2349251) Radio Super 179W; Emud, Ernst Mästling (ID = 2349249) Radio
Super 179W; Emud, Ernst Mästling (ID = 2349244) Radio Super 179W; Emud, Ernst Mästling (ID = 2349245) Radio
Super 179W; Emud, Ernst Mästling (ID = 2349243) Radio Super 179W; Emud, Ernst Mästling (ID = 2349253) Radio
Use red slider bar for more.
Super 179W; Emud, Ernst Mästling (ID = 2349248) Radio
Emud, Ernst Mästling: Super 179W [Radio] ID = 2349248 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 179W Stahlröhren, Emud, Ernst Mästling; Ulm

Country:  Germany
Manufacturer / Brand:  Emud, Ernst Mästling; Ulm
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Super 179W [Stahlröhren] - Emud, Ernst Mästling; Ulm
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 485 x 315 x 235 mm / 19.1 x 12.4 x 9.3 inch
Notes 2 Varianten
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 179.00 DM
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkschau (5016)


All listed radios etc. from Emud, Ernst Mästling; Ulm
Here you find 417 models, 320 with images and 221 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
