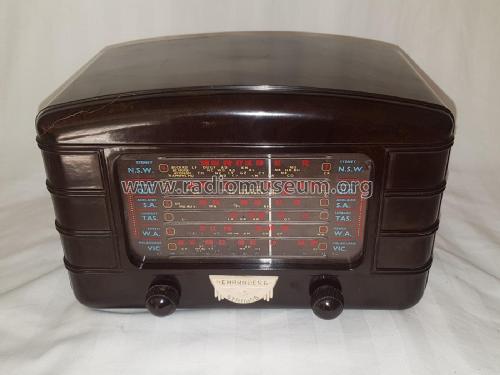

Model 41 (ECH33) Ch= ECH33 used instead of ECH35 and different chassis layout

Ernsmiths (Scharnberg Strauss); Adelaide

  • Year
  • 1950 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 319243

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Model 41 Ch= [ECH33 used instead of ECH35 and different chassis layout] - Ernsmiths Scharnberg Strauss;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 270 x 175 x 170 mm / 10.6 x 6.9 x 6.7 inch
  • Notes
  • This variant of the Model 41 with Octal valves used a later chassis layout similar to the later Model 41 with miniature valves.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Author
  • Model page created by Noel Sutherland. See "Data change" for further contributors.
