Model 41 6AN7

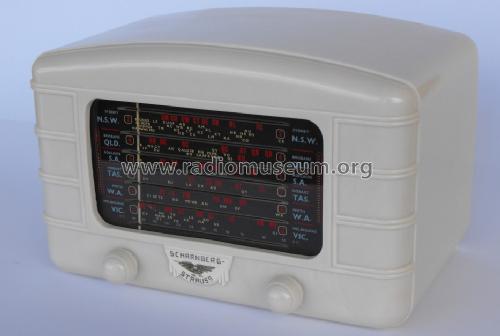

Model 41; Ernsmiths Scharnberg (ID = 2354709) Radio Model 41; Ernsmiths Scharnberg (ID = 1377164) Radio

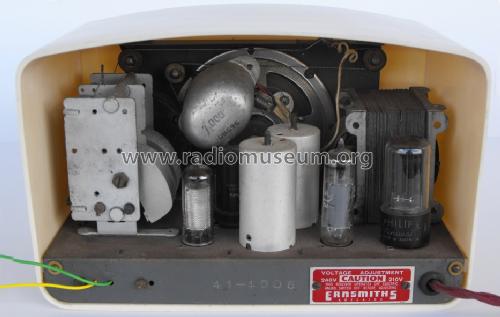

Model 41; Ernsmiths Scharnberg (ID = 1377165) Radio Model 41; Ernsmiths Scharnberg (ID = 2354710) Radio
Use red slider bar for more.
Model 41; Ernsmiths Scharnberg (ID = 2354709) Radio
Ernsmiths Scharnberg: Model 41 [Radio] ID = 2354709 1400x1061
Select picture or schematic to display from thumbnails on the right and click for download.
For model Model 41 6AN7, Ernsmiths (Scharnberg Strauss); Adelaide

Country:  Australia
Manufacturer / Brand:  Ernsmiths (Scharnberg Strauss); Adelaide
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6AN7 6SF7 6M5 5Y3GT
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Model 41 [6AN7] - Ernsmiths Scharnberg Strauss;
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 270 x 175 x 170 mm / 10.6 x 6.9 x 6.7 inch
Notes

An earlier variant, also Model 41, with ECH35 uses the same cabinet.

An intermediate version has been reported

ECH35 6SF7 6M5 5Y3GT (the earlier one is ECH35 EBF35 6V6GT 5Y3G)

As the ECH35 and 6AN7 are different bases, this must be a manufacturer's variation.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)

Model page created by Harold Norrie. See "Data change" for further contributors.
