KY504A

KY504A; Erres, Van der Heem (ID = 1665835) Radio KY504A; Erres, Van der Heem (ID = 1665836) Radio
KY504A; Erres, Van der Heem (ID = 1665837) Radio KY504A; Erres, Van der Heem (ID = 1665838) Radio
KY504A; Erres, Van der Heem (ID = 1666573) Radio
Use red slider bar for more.
KY504A; Erres, Van der Heem (ID = 1665835) Radio
Erres, Van der Heem: KY504A [Radio] ID = 1665835 700x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model KY504A, Erres, Van der Heem NV; Den Haag:

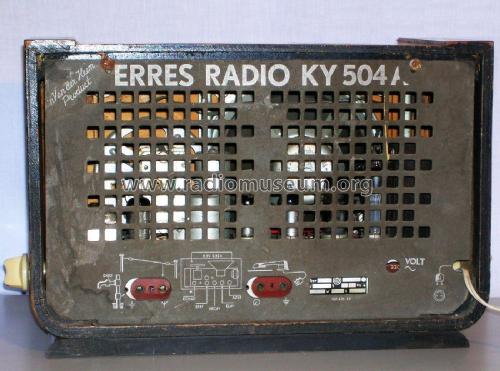

Radio front

Country:  Netherlands
Manufacturer / Brand:  Erres, Van der Heem NV; Den Haag
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EBC41 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 200; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out 2.8 W (undistorted)
from Radiomuseum.org Model: KY504A - Erres, Van der Heem NV; Den
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 380 x 247 x 195 mm / 15 x 9.7 x 7.7 inch
Notes

Similar to Erres KY504, but scale at the top.

Model page created by João Luis Mendes Colaço. See "Data change" for further contributors.
