KY595

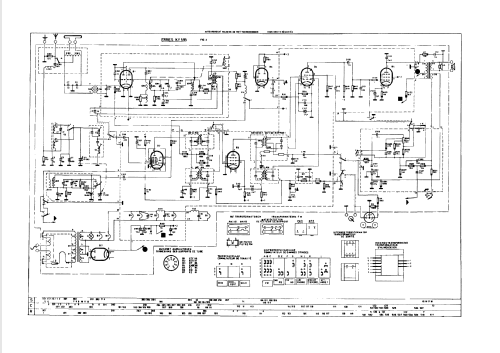

KY595; Erres, Van der Heem (ID = 502899) Radio
KY595; Erres, Van der Heem (ID = 782346) Radio KY595; Erres, Van der Heem (ID = 782347) Radio
KY595; Erres, Van der Heem (ID = 782348) Radio KY595; Erres, Van der Heem (ID = 782349) Radio
KY595; Erres, Van der Heem (ID = 782350) Radio KY595; Erres, Van der Heem (ID = 782351) Radio
KY595; Erres, Van der Heem (ID = 782352) Radio KY595; Erres, Van der Heem (ID = 782353) Radio
KY595; Erres, Van der Heem (ID = 2187696) Radio KY595; Erres, Van der Heem (ID = 2187697) Radio
Use red slider bar for more.
KY595; Erres, Van der Heem (ID = 782346) Radio
Erres, Van der Heem: KY595 [Radio] ID = 782346 855x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model KY595, Erres, Van der Heem NV; Den Haag

Country:  Netherlands
Manufacturer / Brand:  Erres, Van der Heem NV; Den Haag
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM84 EL84 EZ81
Main principle Superheterodyne (common); ZF/IF 453/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: KY595 - Erres, Van der Heem NV; Den
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 310 x 210 mm / 19.7 x 12.2 x 8.3 inch
Net weight (2.2 lb = 1 kg) 10.1 kg / 22 lb 3.9 oz (22.247 lb)
Source of data -- Collector info (Sammler)

Model page created by John Koster. See "Data change" for further contributors.
