• Country
• Netherlands

• Manufacturer / Brand
• Erres, Van der Heem NV; Den Haag

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137862

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 453/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Material
• Wooden case

• from Radiomuseum.org

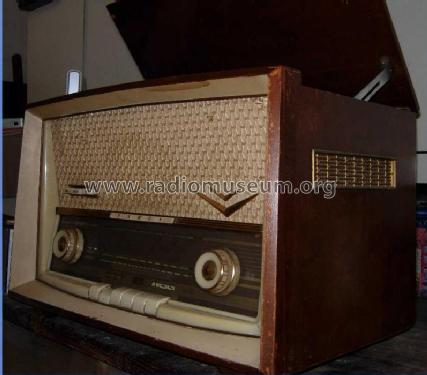

• Model: KY595PS - Erres, Van der Heem NV; Den

• Dimensions (WHD)
• 500 x 310 x 280 mm / 19.7 x 12.2 x 11 inch

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.

• Other Models

• Here you find 408 models, 325 with images and 223 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
