For model 329U, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH42 UAF42 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 478 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 329U - Eumig, Elektrizitäts und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 300 x 225 mm / 15.7 x 11.8 x 8.9 inch
Notes

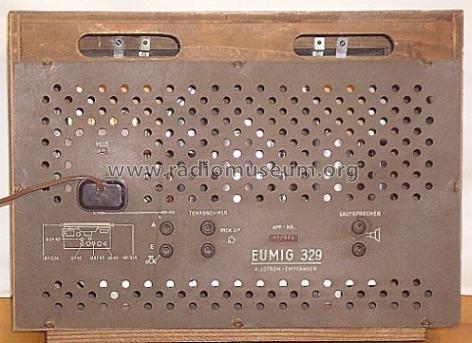

Das Modell ist laut Rückwand lediglich mit 329 bezeichnet, während die Schaltpläne 329U zeigen.

Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
Price in first year of sale 1'298.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Literature/Schematics (1) -- Original-techn. papers.
