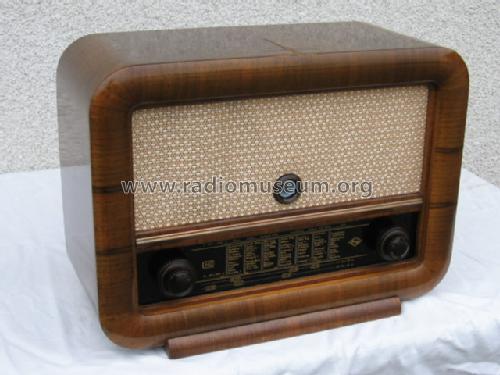

For model 362, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM34 EZ80
Main principle Super-Heterodyne (Super in general)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 362 - Eumig, Elektrizitäts und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 335 x 200 mm / 17.7 x 13.2 x 7.9 inch
Net weight (2.2 lb = 1 kg) 9.1 kg / 20 lb 0.7 oz (20.044 lb)
Price in first year of sale 1,640.00 öS
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
