38U

38U; Eumig, Elektrizitäts (ID = 8532) Radio
38U; Eumig, Elektrizitäts (ID = 2288033) Radio 38U; Eumig, Elektrizitäts (ID = 2288034) Radio
38U; Eumig, Elektrizitäts (ID = 2288073) Radio
Use red slider bar for more.
38U; Eumig, Elektrizitäts (ID = 2288033) Radio
Eumig, Elektrizitäts: 38U [Radio] ID = 2288033 1400x1110
Select picture or schematic to display from thumbnails on the right and click for download.
For model 38U, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner

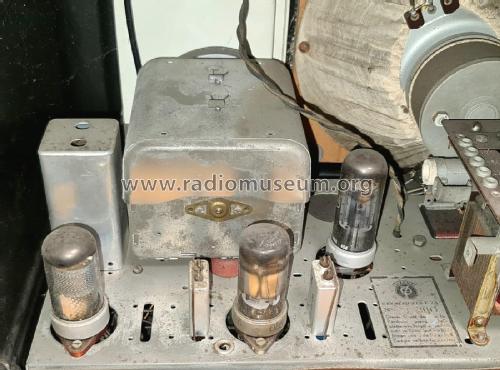

Valves / Tubes 4: EK2 EF5 CBL1 CY1 U1220-6_8-pin(P8A)
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)

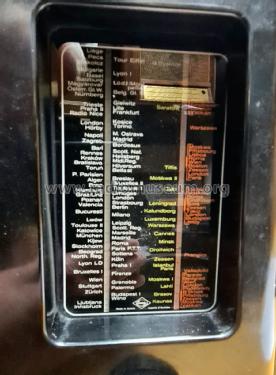

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 38U - Eumig, Elektrizitäts und
Price in first year of sale 226.00 RM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
