• Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 8399

Click on the schematic thumbnail to request the schematic as a free document.

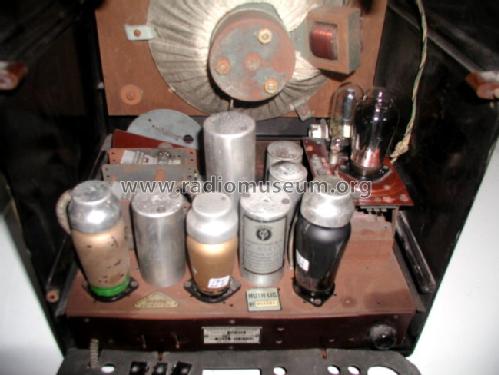

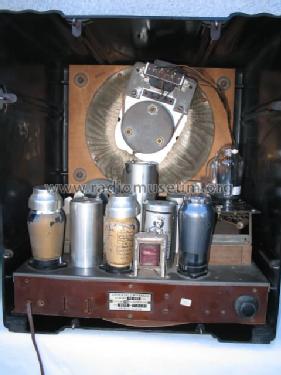

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • Semiconductors
  • WX6
  • Main principle
  • Superheterodyne (common); ZF/IF 128 kHz; Reflex
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 5033 [Bakelit] - Eumig, Elektrizitäts und
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • Der ZF-Verstärker arbeitet in Reflexschaltung als NF-Vorstufe.

    Metallgleichrichter (Kupferoxid) für Demodulation und Regelspannung..

  • Price in first year of sale
  • 340.00 öS
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Lange + Schenk
