• Country
• Austria

• Manufacturer / Brand
• Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8366

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• E447 or NVS43_B5+1 E415 or NN4 E447 or NVS43_B5+1 E444 or NDS42 E453_B5+1 or NE43 506 or GL4/1D

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

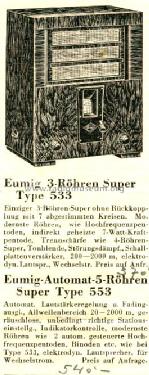

• Model: 553 - Eumig, Elektrizitäts und

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 345 x 415 x 230 mm / 13.6 x 16.3 x 9.1 inch

• Notes
• Abstimmanzeige; Export Schweiz(T)
  LW = 1000m - 2000m MW = 200m - 600m KW = 20m - 50m 4.Position des Wellenschalters = Pick-Up
  Die Telefunken-Röhren wurden ab Nr.68607 eingesetzt.
  Es gibt auuch eine Originalbestückung mit SATOR-Röhren (3.Alternative).

• Price in first year of sale
• 540.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange + Schenk
