933; Eumig, Elektrizitäts (ID = 99276) Radio
Eumig, Elektrizitäts: 933 [Radio] ID = 99276 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 933 Bakelit, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AK2 E444 or RENS1254 AL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 412 kHz; Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details

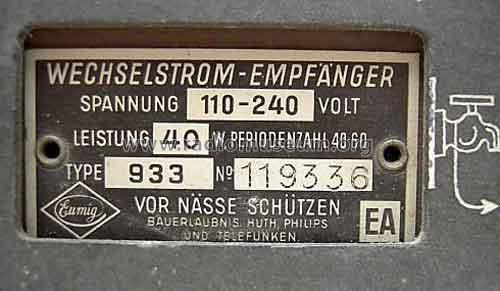

Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 933 [Bakelit] - Eumig, Elektrizitäts und

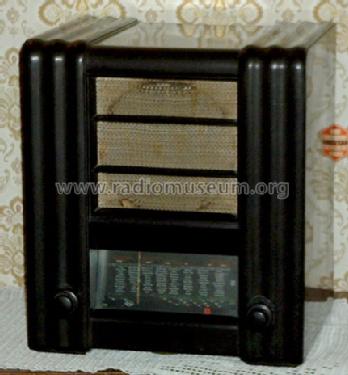

Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 330 x 385 x 290 mm / 13 x 15.2 x 11.4 inch
Notes
Net weight (2.2 lb = 1 kg) 10.7 kg / 23 lb 9.1 oz (23.568 lb)
Price in first year of sale 320.00 öS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Here you find 251 models, 215 with images and 171 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
