933A

933A; Eumig, Elektrizitäts (ID = 8639) Radio
933A; Eumig, Elektrizitäts (ID = 1117062) Radio 933A; Eumig, Elektrizitäts (ID = 1117063) Radio
933A; Eumig, Elektrizitäts (ID = 1117064) Radio 933A; Eumig, Elektrizitäts (ID = 1117065) Radio
933A; Eumig, Elektrizitäts (ID = 1117066) Radio
Use red slider bar for more.
933A; Eumig, Elektrizitäts (ID = 1117062) Radio
Eumig, Elektrizitäts: 933A [Radio] ID = 1117062 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 933A, Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien

Country:  Austria
Manufacturer / Brand:  Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner

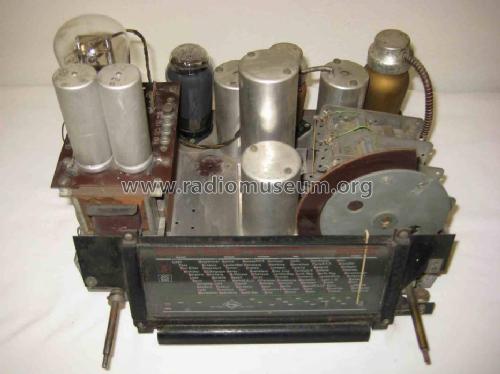

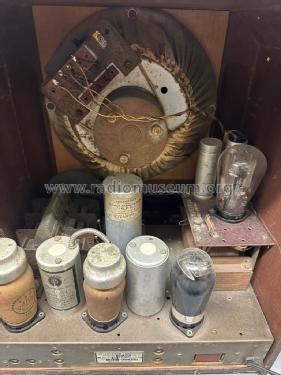

Valves / Tubes 4: AK2 AF7 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 412 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details

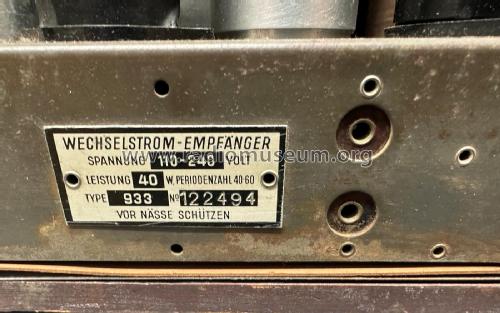

Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 933A - Eumig, Elektrizitäts und

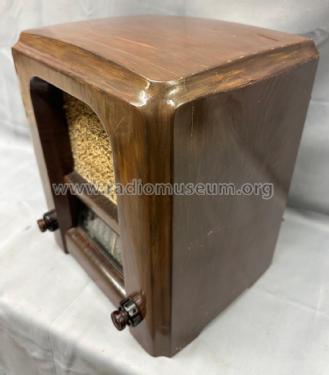

Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 330 x 390 x 270 mm / 13 x 15.4 x 10.6 inch
Notes Ch=1333
Price in first year of sale 320.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk


All listed radios etc. from Eumig, Elektrizitäts und Metallwaren-Industrie-Gesellschaft mbH; Wien
Here you find 252 models, 218 with images and 173 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
