• Country
• France

• Manufacturer / Brand
• Eurelec - Institut Européen d'Électronique; Puteaux, Paris, Dijon

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115148

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM81 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radio-Phono Kit - Eurelec - Institut Européen d'

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 300 x 330 mm / 18.9 x 11.8 x 13 inch

• Notes

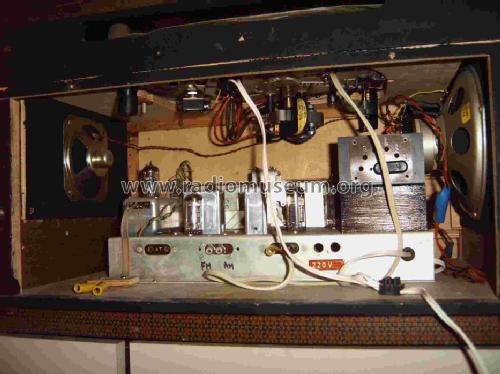

• Record player "Miraphone 120"; loudspeakers "Craft". Clearly a do-it-yourself kit.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Walter Van Brussel. See "Data change" for further contributors.
